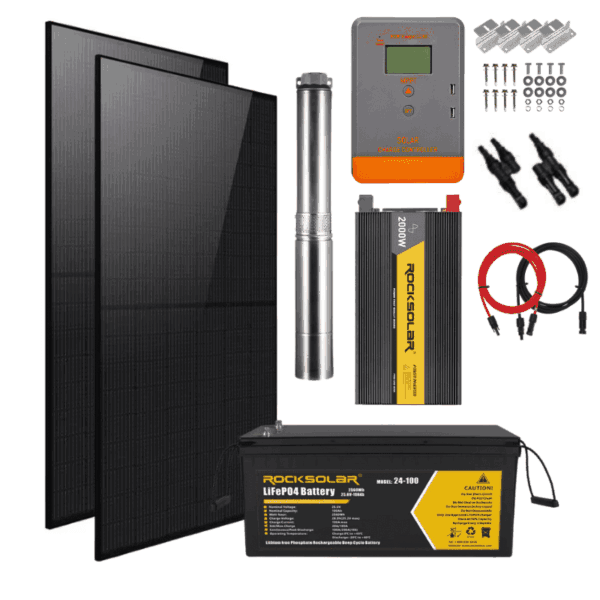

document.addEventListener(‘DOMContentLoaded’, function () { const tabs = document.querySelectorAll(‘.tab’); const headerHeight = 150; tabs.forEach(tab => { tab.addEventListener(‘click’, function () { const contentId = this.getAttribute(‘data-content-id’); const content = document.getElementById(contentId); const contentTop = content.getBoundingClientRect().top + window.pageYOffset – headerHeight; window.scrollTo({ top: contentTop, behavior: ‘smooth’ }); }); }); });DescriptionIncludesSpecificationsFAQDownloadsReviewsUnleash the full potential of solar energy with the ROCKSOLAR 2000W 24V Off-Grid Solar Water Pump System, an upgraded solution tailored for those seeking self-reliance in water supply. Elevate your off-grid living, agricultural, or remote operations with this comprehensive system that combines the robustness of a 24V 100Ah LiFePO4 battery and the reliability of high-efficiency 100W monocrystalline solar panels. The included 2000W pure sine wave inverter ensures that your power is not just sustainable but also stable and versatile for various applications. With an advanced 60A MPPT solar charge controller and a high-performance brushless DC water pump, this system promises efficient water pumping with minimal maintenance. Whether you’re looking to enhance your rural home or empower your farm, the ROCKSOLAR 2000W system delivers water where you need it, seamlessly and eco-consciously.Product FeaturesROCKSOLAR 24V 100Ah Deep Cycle LiFePO4 Battery with BMS System:24V 100AH capacity3500+ cycle life with 100% discharge rate for ultra-long service lifeSteady power: Flat voltage curve for consistent power output, no significant drop like traditional SLA batteriesUtilizes advanced LiFePO4 Battery Technology for dependable deep cyclingSmart Battery Management System for safety and longevityLightweight: Only 52 pounds for easy portability and installationSuitable for harsh environments: Built-in BMS provides protection against temperature fluctuations, short circuits, over-discharge, over-current, and overcharge, and ensures battery cell balancing.Operating temperature range for charging: 0C45C, discharging: -20~-60. BMS auto-shuts off the battery outside the working temperature.Warranty: 11-year warranty and 10+ year service lifeROCKSOLAR 100W 12V Rigid Monocrystalline Solar Panel:100W 12V outputRigid Monocrystalline Solar PanelWaterproof and Corrosion-Resistant Aluminum Alloy FrameHigh-Efficiency Solar Cell with 22% Conversion EfficiencyPre-drilled holes for easy mounting and securing to any surfaceROCKSOLAR 60A MPPT Solar Charge Controller:60A MPPT Solar Charge ControllerCompatible with Lithium and Lead Acid batteriesMaximum open voltage of 100Vdc and MPP tracking efficiency of 99.5%3-stage charge algorithm and 12/24V nominal system voltageRated charging current of 60A and battery voltage range of 8-32VHigh voltage disconnection of 16V (24V x 2) and low voltage disconnection of 10.8VOperating temperature range of -20AdegC to 55AdegCIP30 rated for protectionROCKSOLAR 24V 2000W Pure Sine Wave Power Inverter:2000W Pure Sine Wave Power InverterDC 24V to 110V AC Conversion2.1A USB Charging PortIdeal for RVs, Camping, Off-grid power solutions, and more.ROCKSOLAR 24V Brushless Solar DC Water Pump:High-Performance Brushless Motor: Reliable and efficient operation, designed specifically for solar power applications.Durable Construction: The pump features complete stainless steel (S.S. 304) construction, with a motor brass cap and S.S. 304 body for long-lasting use.Inbuilt Controller: The pump comes with an inbuilt controller for easy operation.Powerful: The 250W power provides a maximum flow rate of 1.3m3/h and a maximum head of 70m.User-friendly: Easy to install and operate with minimal maintenance requirements. Quiet operation and low vibration for an unobtrusive addition to your solar setup.Adequate Cable Length: Comes with a 2M cable for flexible installation.Optimized for Solar: Works seamlessly with ROCKSOLAR solar panels and systems.Outlet: The pump features a 1″ outlet for easy connection to your water supply system.1 x 24V 100Ah Deep Cycle LiFePO4 Battery1 x 24V Brushless Solar DC Submersible Well Pump4 x 100W 12V Rigid Monocrystalline Solar Panel1 x 24V 2000W Pure Sine Wave Power Inverter1 x 60A MPPT Solar Charge Controller1 x 10 Ft 10AWG Extension Cables With MC4 Connectors One Pair Red+Black4 x Z-Bracket Mount System (Set of 4)1 x Y Branch Connectors for Solar Panels MMF+FFM Pair1 x User ManualTechnical Specifications24V 100Ah Deep Cycle LiFePO4 BatteryDetailsNominal capacity100.0AhMix. capacity98.0AhNominal energy2560WhCombination structure of battery8SNominal voltage25.6VEnd of discharge voltage21.6VStandard charge voltage29.2 0.2VFloat charge voltage27.6VStandard charge current20ARecommended charge current50AAllowed Max. charge current100AStandard discharge current20ARecommended discharge current100AAllowed Max. discharge current100APeak discharge current200A,10SecInternal Resistance40mWeightApprox. 24.0kgEx-factory capacityApprox.50% SOCOperation temperatureDischarge: -20AdegC~60AdegC; Charge: 0AdegC~45AdegCStorage environment1Month:-20~+60AdegC5~75%RH; 6Month: -10~+45AdegC5~75%RH; Recommend environment: 15~+35AdegC5~75%RH100W 12V Rigid Monocrystalline Solar PanelDetailsRated Power100WTypeMono-crystalline siliconSystem Voltage12VCell Efficiency20-22%Frame MaterialAluminumDimensions1120*670*30 mmWeightapprox. 8.30kgOperating Temperature-20~70 AdegCWaterproof RatingIP65Front GlassHigh light transmittance, low-iron tempered glassBypass DiodesIntegratedConnectorsMC4Cable LengthVaries depending on the brand (approx. 3-6 ft)Mounting Hole LocationsPre-drilledService Life25 years or moreWarranty10 Year60A MPPT Solar Charge ControllerDetailsMax Open Voltage of PV Module100VdcMPP Tracking Efficiency99.50%Light Control Voltage5VCharge Algorithm3 StageBattery TypeLithium and Lead Acid BatteryNominal System Voltage12/24VRated Charging Current60ABattery Voltage Range8~32VHigh Voltage Disconnection16V (24V x 2)Duration for absorption charging2 hoursCharge Loop Voltage Drop0.29VSelf-consumption 9.2mA 12V; 11.7mA 24VEqualized Charging VoltageAGM: 14.6V; GEL: No; FLd: 14.8VAbsorption Charging voltageAGM: 14.4V; GEL: 14.2; FLd: 14.6VFloating Charging voltageAGM/ GEL/ FLd: 13.8VLow Voltage re-connection (LVR)AGM/ GEL/ FLd: 12.6VLow Voltage Disconnection (LVD)AGM/ GEL/ FLd: 10.8VOperating Temperature Range-20~55 (To run at full rated current continuously)LCD Temperature Range-20~70Humidity Range95% No condensationProtection ClassIP30Dimension123*178*48Installation Hole108*120 5Warranty1 Year24V 2000W Pure Sine Wave Power InverterDetailsRated power2000WAC Voltage120VFrequency60HZResistive Load Continuous Output Power2000WInductive Load Continuous Output Power1500W The pump can start normally (beyond which protection may be possible without damaging the inverter)Capacitive Load Continuous Output Power940 30W PF0.7 Tri-color energy saving lamp, beyond may be protected, but will not cause damage to the inverter)WaveformPure Sine WaveWaveform DistortionTHD)5%Voltage range917Vdc; 18V32VBattery Voltage12Vdc; 24VdcDC Current198.4ALoad 1000W when entering 12Vdc; 47.9ALoad 1000W when entering 24Vdc)No Load Loss1A; 0.6AShutdown mode static current1mAMaximum efficiency90%Battery typeAll 12V batteriesInsurance slice300A*2Battery Low Voltage Alarm9.5/10/10.5/11/11.5/12/12.5V, Buzzer alarm, LED display E06Battery Low Voltage Alarm Recovery10/10.5/11/11.5/12/12.5/13VBattery Low Voltage Protection9/9.5/10/10.5/11/11.5/12V (Set through menu)LED display shows E01, automatic shutdown after 30SBattery Low Voltage Protection RecoveryRecovery voltage within 30S11/11.5/12/12.5/13/13.5/14VBattery High Voltage Protection17VLED display shows E02, automatic shutdown after 30SBattery High Voltage Protection RecoveryRecovery voltage within 30S16.5VOver TemperatureBuzzer alarm, LED display shows E04, turn off the inverted output, lower temperature automatically restore the inverted outputOutput Short CircuitBuzzer alarm, LED display shows E03, turn off invert output and lock, turn off automatically after 30SOverloadOver 3000W 300ms locked after shutting off output (below 3000W overload 30S locked after shutting off output), buzzer alarm, LED display shows E05, automatic shutdown after 30SOverloadOver 3000W 300ms locked after shutting off output (below 3000W overload 30S locked after shutting off output), buzzer alarm, LED display shows E05, automatic shutdown after 30SUSB Output Voltage5VUSB Output Current2.1AWorking Temperature-2040Operating humidity1090%RHStorage temperature, humidity-3070,1095%RHWeightNet weight5.01 kgSize420.4*208.9*110 mm(L*W*H)Warranty1 Year24V Brushless Solar DC Water PumpDetailsProductRocksolar 24V Brushless Solar DC Water PumpPump ModelComplete S.S. 304 + ScrewMotorBrass Cap + S.S. 304 BodyControllerInbuilt ControllerDiameter(inch)3”Voltage(V)24Cable2MPower(W)250Max Flow(m3/h)1.3Max Head(m)70Outlet(inch)1″Warranty5 YearWhat components are included in the ROCKSOLAR 2000W 24V Off-Grid Solar Water Pump System?The system includes a 2000W Pure Sine Wave Power Inverter, 24V Brushless Solar DC Water Pump, 150W 12V Rigid Monocrystalline Solar Panels, 24V 100Ah Deep Cycle LiFePO4 Battery with BMS, and a 60A MPPT Solar Charge Controller.Can the ROCKSOLAR system operate during cloudy days?The system can operate on cloudy days, but efficiency will decrease. The battery storage provides backup power to compensate for reduced sunlight.Is the ROCKSOLAR water pump system suitable for drinking water applications?Yes, the stainless steel construction of the water pump is safe for drinking water applications.How do I maintain the ROCKSOLAR 2000W 24V Off-Grid Solar Water Pump System?Maintenance involves cleaning solar panels regularly, checking connections, and ensuring the battery is charged correctly to prolong its lifespan.Is the system expandable if I need more power or water flow?Yes, the system is expandable. Additional solar panels and batteries can be added to increase power and water pumping capacity.What is the lifespan of the solar panels in the ROCKSOLAR system?The lifespan of the monocrystalline solar panels is typically over 25 years.Can I monitor the system remotely?Remote monitoring depends on the specific model of the MPPT controller. Some models may support remote monitoring with additional equipment.What safety protections are in the ROCKSOLAR system?The system includes overcharge, over-discharge, overload protection, and temperature controls to ensure safe operation.What is the efficiency of the MPPT Solar Charge Controller in the system?The MPPT Solar Charge Controller has an MPP tracking efficiency of 99.5%, ensuring maximum solar energy conversion.Can the ROCKSOLAR water pump system be used for irrigation?Yes, the system is ideal for irrigation, providing a sustainable solution for water delivery to remote areas.Download Product Manual (PDF)
